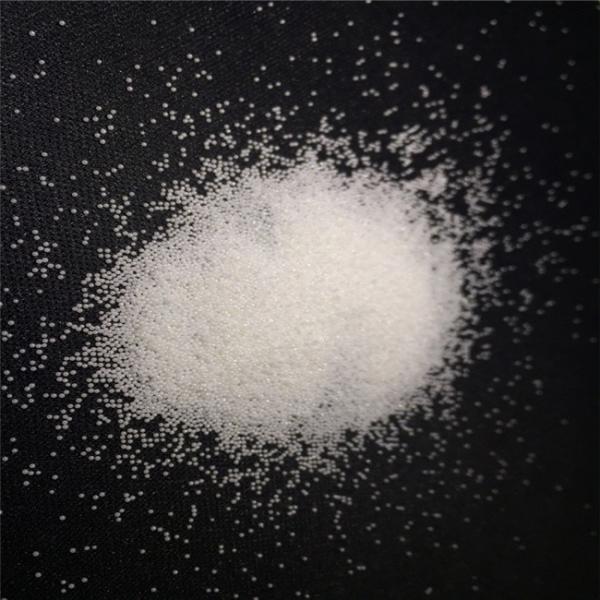

High Density 6g/cm3 Low Wear Rate 95% Zro2 Zirconia Beads
Descirption:
Zirconia Beads are made from first grade yttria stabilized powder with sintered method. The sizes of internal micro crystals are less than 0.3μm benefit excellent crushing strength and wear resistance, which guarantees cross contamination free to grinded products. It is a top option to deal with the ultra-fine particles in conventional ball mills and modern pearl mills.
It provides a better size distribution. It also offers better wear resistance and more delicate internal crystal structure compared to any other finishing media. As a result, zirconia balls are a credible alternative to stainless steel .
Physical parameters:
| Items | Specification |
| ZrO2 | 94.7±0.2% |
| Y2O3 | 5.2±0.2% |
| Bulk Density | ≥3.72g/cm3 |
| Specific Density | >6.03g/cm3 |
| Compressive strength | >2.0KN (Φ1.5mm) |
| Hardness(HV) | >1200 |
| Self consumption (ppm/h) | <3 |
| Roundness | ≥95% |
| Color | Pure White |
Available Size (mm):
| 0.08-0.15 | 0.1-0.2 | 0.2-0.25 | 0.2-0.3 | 0.3-0.4 | 0.4-0.5 |
| 0.5-0.6 | 0.4-0.6 | 0.6-0.8 | 0.7-0.8 | 0.8-1.0 | 0.9-1.1 |
| 1.0-1.2 | 1.2-1.4 | 1.4-1.6 | 1.6-1.8 | 1.8-2.0 | 2.0-2.2 |
| 2.2-2.4 | 2.4-2.6 | 2.6-2.8 | 2.8-3.0 | 3.0 | 5.0 |
| 6.0 | 7.0 | 8.0 | 10.0 | 12 | 15 |
| 20 | 25 | 30 | 35 | 40 | 50 |
advantages:
1.Ceramic pastes or powder: ceramic pastes such as aluminum oxide, silicon nitride, silicon carbide, zirconium silicate and zirconium oxide;
2.Electronic pastes: noble metal pastes such as gold, platinum, palladium and silver.
3.Raw material of battery: lithium iron phosphate, lithium titanate, graphene; carbon nano-tube.
4.Nano material: pigments of inkjet like carbon black and magenta; pigments of LCD, color filter, dyestuff of digital printing,diamond for polishing agent, TiO2 for photo catalyst.
Applications:
1.Electronic material (Such as BaTiO3,BaCO3), Magnetic bands superfine grinding,
2.Paint, pigment, Coatings dispesing and superfine grinding,
3.Ceramic glaze (zirconia sand) superfine grinding,
4.Medication, Cosmetic dispersing and superfine grinding.
